New KTM 450 SMR

Orange & White

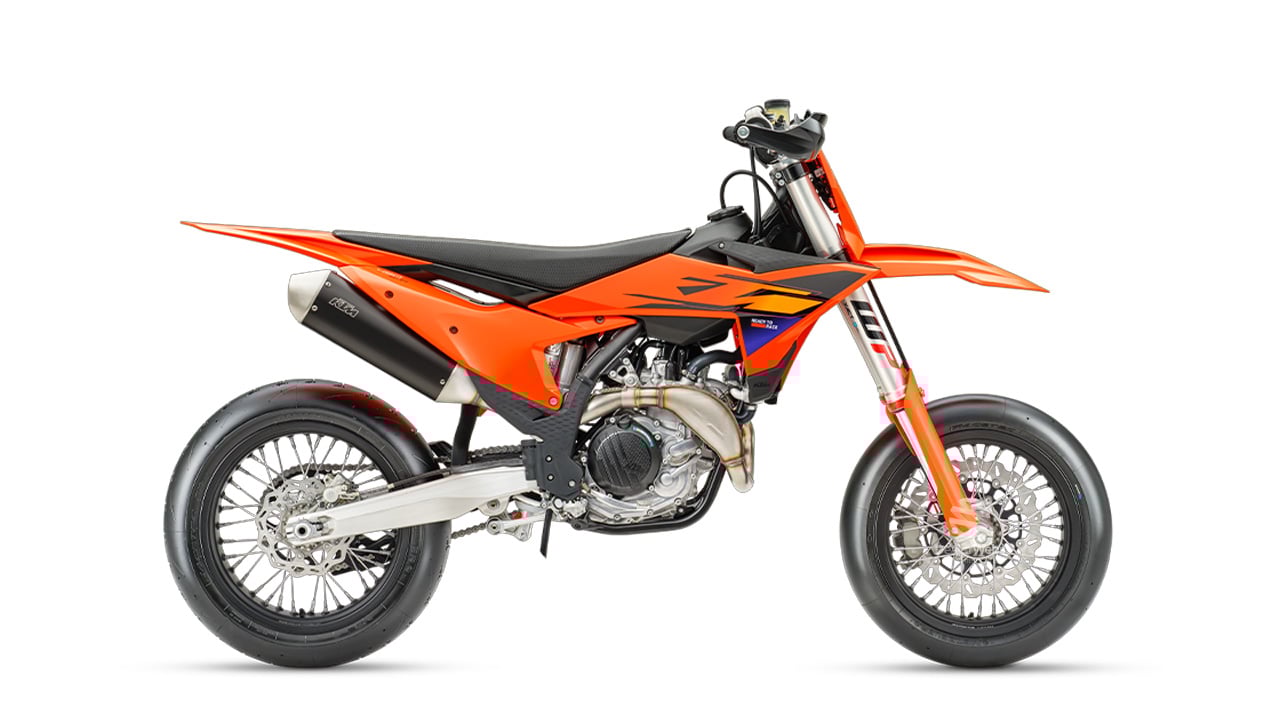

KTM 450 SMR

You'd be forgiven for thinking the KTM 450 SMR couldn't possibly get any better. But we'll let that slide - just as you'll be doing when you throw a leg over this latest iteration of pure Supermoto perfection. With a frame that is specifically engineered for longitudinal rigidity, stability, and exceptional rider feedback and an engine that blows away the competition with unrelenting power delivery - not to mention the electronic wizardry to rival sports bikes - The KTM 450 SMR is a purpose-built racer with one simple goal - winning championships.


The 2024 KTM 450 SMR boasts one of the most manic 4-stroke powerplants in the pits, with its SOHC engine proving to be the perfect example of advanced engineering. The engine is positioned to lower the front sprocket, which together with the benefits of mass centralization and light engine weight, deliver anti-squat behavior of the chassis that is second to none. With massive peak power output and an overall engine weight of only (26.8 kg), you'll leave the competition with more than a little mud on the face.


A compact and lightweight SOHC cylinder head package uses a short profile with the camshaft located close to the center of gravity, improving handling. Lightweight valves are actuated via a DLC coated rocker arm with optimized timing, specifically designed to deliver precise levels of torque and throttle response. The diameter of the inlet valves is 40 mm, while on the exhaust it is 33 mm. Optimized intake ports allow higher flow coefficients, resulting in a more efficient and powerful engine, with a clever valve cover reducing the number of mounting screws, and a single oil spray jet guaranteeing efficient cooling while keeping the weight low.


Designed with weight reduction and performance in mind, the crankshaft in the KTM 450 SMR engine improves throttle response and contributes to the lightweight feel of the motorcycle. The perfect balance of rotating masses is achieved by balancing the weights of the crankshaft flywheel and the rotor, and thanks to the innovative counter balancer shaft, engine vibration is kept to an absolute minimum.

Crankcases and engine covers

The KTM 450 SMR engine is designed with mass centralization and weight reduction as the main criteria. As a result, the crankcases have been designed to house the internal components of the engine in the perfect position to achieve an ideal center of gravity, while adding the least possible weight. The cases are manufactured using a high-pressure die-cast production process, resulting in thinner but more reliable wall thickness. And just to add a little extra - the KTM brand logo gives the black powder-coated engine cover the ultimate READY TO RACE look.


The KTM 450 SMR features a SUTER slipper clutch which prevents rear wheel instability and hopping when braking hard into the apex of a turn, for maximum control and perfect Supermoto-style drifting. The Brembo hydraulic system guarantees perfect clutch modulation.


The lightweight 5-speed transmission is produced by Pankl Racing Systems ensuring the highest level of durability and reliability. The design focuses on a weight-optimized shift shaft, reducing the operating force of gear changes, best suited to the transmission ratio (29:72). The gear shift lever also features an anti-dirt build-up design that keeps the lever tip in its original position - even in the toughest conditions.

Engine management system

Developed by Keihin, the EMS is specifically designed to be small, light, and lightning-fast at processing data. It integrates the launch control for perfect starts, selectable engine maps via the map select switch on the handlebar, traction control as well as the Quickshifter function. It is also combined with the gear position sensor, which optimizes power delivery for each gear, while a roll-over sensor (ROS) kills the engine in case of extreme crashes, adding another level of security to the KTM 450 SMR. The hourmeter also features an integrated EFI status LED and fuel level indicator, so you know when it's time to pull into the pits for a refuel.

Cylinder and piston

The lightweight aluminum cylinder features a 95 mm bore and 63.40 mm stroke, housing a CP bridged-box-type piston weighing a meager 327 g. The piston features anodized annular grooves, adding durability and longer service intervals, with the compression ratio of 13.1:1 for added peak performance.


No matter how twisty or technical the track is, you'll stay in control thanks to a frame design that has not only been engineered for optimal longitudinal rigidity but also positions rotating mass as close to the center of gravity as possible. Precise frame wall thicknesses deliver superior flex characteristics and offers an unmatched rider feel. The shock mounting also provides optimal anti-squat behavior to better drive out of corners.

Front Fork

The KTM 450 SMR model is fitted with a super-lightweight WP XACT fork with AER technology and features updated settings for Supermoto use. It is a 48 mm USD air-sprung fork with a capsulated air spring on the left side and a pressurized oil chamber for progressive and consistent damping on the right. In combination with the mid-valve damping system, the fork provides exceptional feedback and rider comfort. The setting is specifically made for Supermoto racing and can be easily adjusted via the single air pressure valve for the air spring, as well as through easy access click adjusters for compression and rebound damping. The air pump needed to adjust the fork's air pressure is provided as standard. A 22 mm diameter front axle provides a precise fork response under heavy braking into a corner.

Rear Shock

The light and compact WP XACT shock features a CFD optimized main piston to improve comfort, while differently sized flow holes allow the shims to open more easily and reduce the overall stress of oil flow and pressure on the shims for an all-round smoother function, while low-friction SKF linkage seals provide advanced damping characteristics for unsurpassed traction and energy absorption. Adjustability is also taken care of by a hand-adjustable dual compression control knob, that allows quick adjustment of high- and low-speed settings without tools. Rebound and preload adjusters are also easily set by hand.


The KTM 450 SMR is fitted with ultra-lightweight and strong black ALPINA spoked wheels, 16.5'' front rim and 17'' rear rim respectively. They are complemented by Metzeler Racetec SM K1 Supermoto tires and are fitted as standard on the KTM 450 SMR, with a 125/75 R 16.5 taking care of business at the front and a 165/630 R17 on the rear.


The KTM 450 SMR has a whole lot of GO! Thankfully, it also comes standard with a whole lot of WHOA! Exceptional stopping power is guaranteed by high-performance Brembo brakes, featuring a 4-piston radially mounted caliper in combination with a radial master cylinder working together with a 310 mm disc at the front. A single-piston caliper and a 220mm disc are fitted to the rear.

Fuel tank

The KTM 450 SMR is fitted with a 7.2-liter polythene fuel tank that incorporates a threaded fuel tank cap and an integrated fuel pump. The fuel pump features an external fuel line which is specifically positioned to make it less exposed and susceptible to damage while ensuring a steady, uninterrupted flow of fuel.


The KTM 450 SMR is equipped with a tapered handlebar made of high-strength aluminum by NEKEN. The proprietary KTM bend delivers optimal control and unintended rider impacts are absorbed by the KTM branded handlebar pad, which features the same design patterns as seen on the frame protectors and tank spoilers - now that's a touch of class.


A flat seat profile and high-grip orange seat cover provide exceptional rider movement and control, with a handy grip pocket under the seat, just above the air filter box, making lifting the bike off its paddock stand a lot easier.


The 2024 KTM 450 SMR features an optimal rider triangle, providing ample knee contact - especially when standing on the pegs - with enough gripping surfaces all around. In terms of graphics, the 2024 KTM 450 SMR takes its cues from the early 1990s, featuring a little sliver of purple between the contrasting orange graphics.


The 2024 KTM 450 SMR features a map select switch as standard, allowing the racer to switch between 2 engine maps. Map 1 provides a linear, predictable power delivery, while Map 2 gives it the full beans with crisp, explosive power output. Using the same switchgear, the rider can toggle between traction control, launch control, and the Quickshifter functions.

Transmission 5-speed
Cooling Liquid cooled
Starter Electric starter
Stroke 63.4 mm
Bore 95 mm
Clutch Suter slipper clutch, Brembo Hydraulics
Displacement 449.9 cm³
EMS Keihin EMS
Design 1-cylinder, 4-stroke engine
Tank Capacity (Approx.) 7.2 l
Front Brake Disc Diameter 310 mm
Rear Brake Disc Diameter 220 mm
Front Brake Disc brake
Rear Brake Disc brake
Chain 520, Non-sealed
Frame Design Central double-cradle-type 25CrMo4 steel
Front Suspension WP XACT-USD, Ø 48 mm
Ground Clearance 281 mm
Rear Suspension WP XACT Monoshock with linkage
Seat Height 898 mm
Steering Head Angle 63.9 °
Suspension Travel (Front) 285 mm
Suspension Travel (Rear) 266 mm
