Optimate Solar Battery Charger OPTSOL10
£131.90
Part No SKU: OPTSOL10
Brand:
Stock:
Description
Optimate Solar Battery Charger

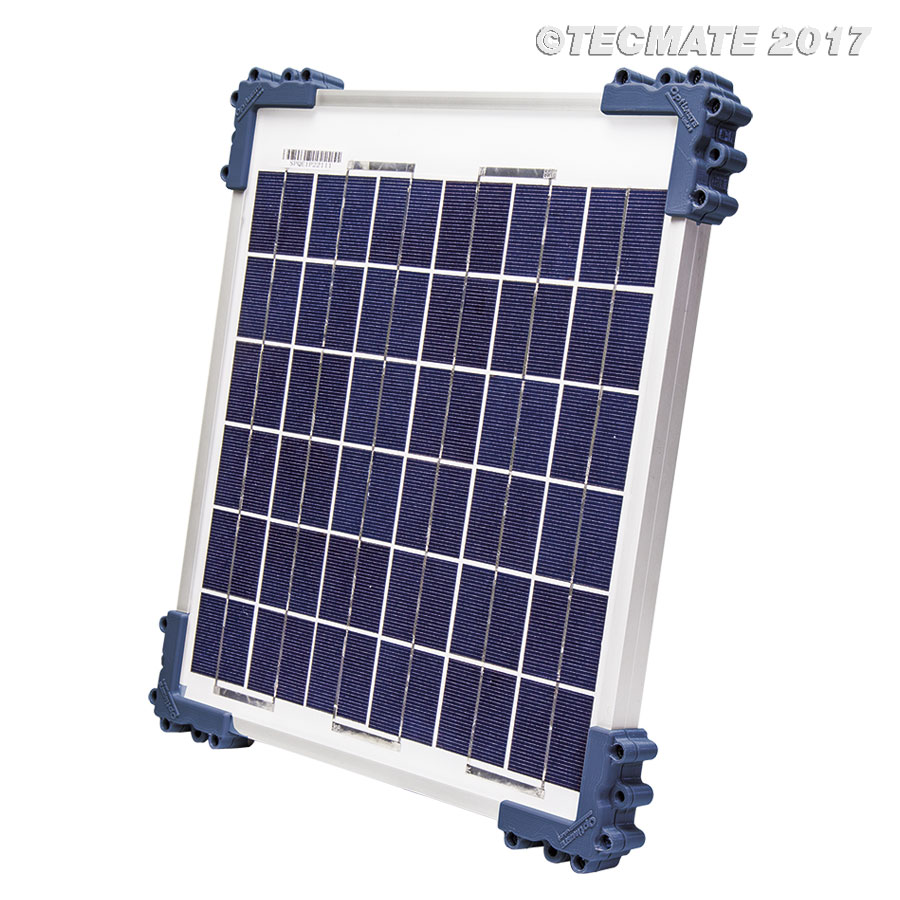

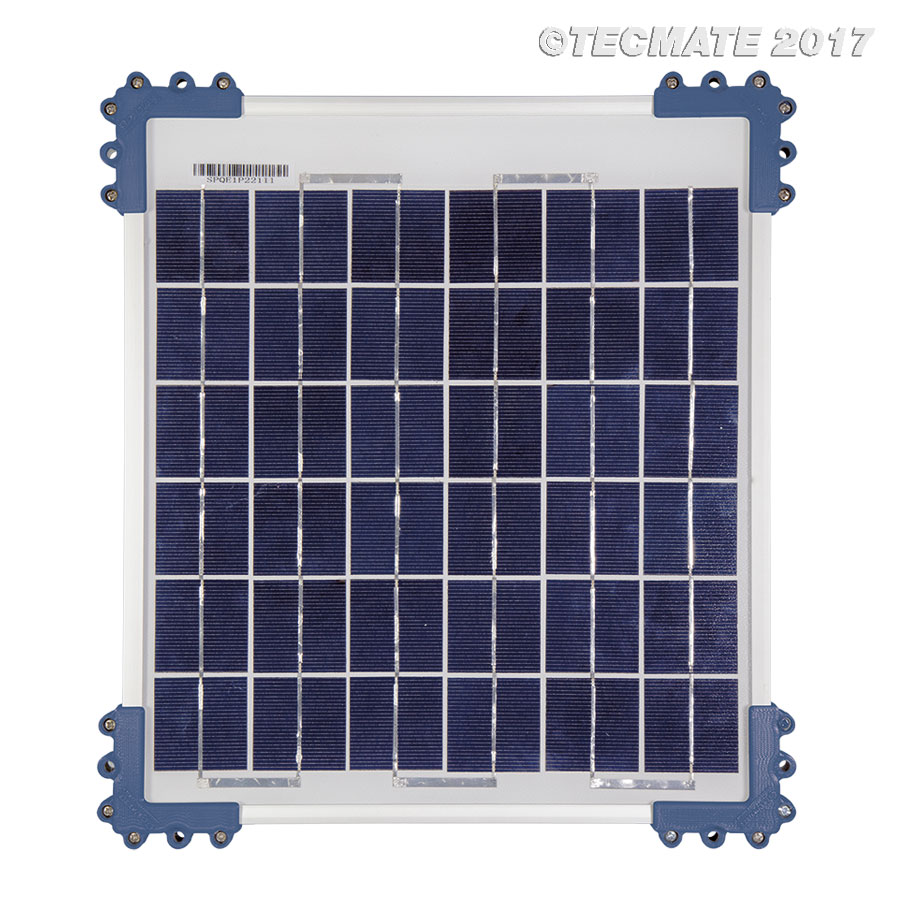

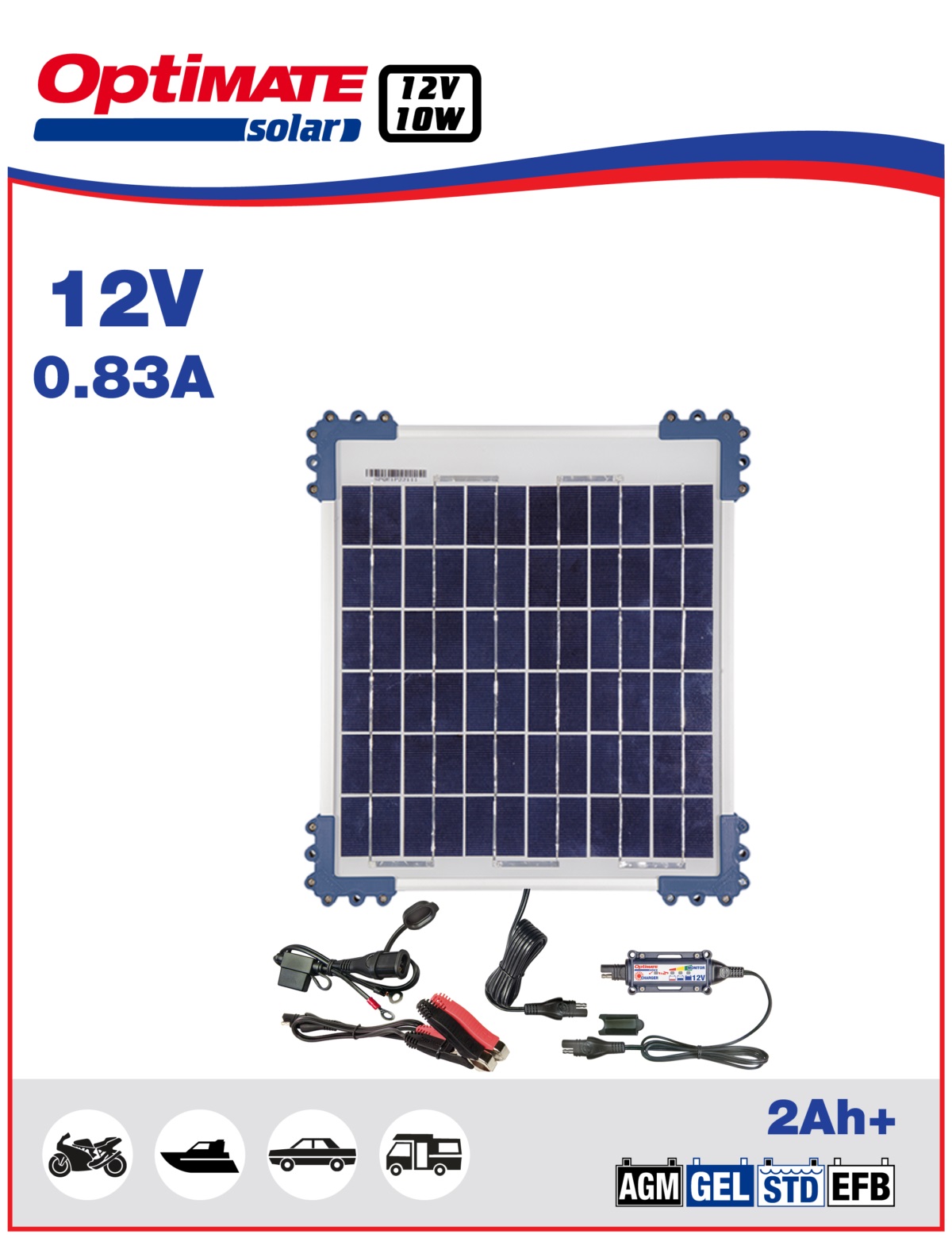

OptiMate SOLAR + 10W Solar Panel
OptiMATE Solar 12V charge & monitor system, the SMART 24-7 battery care solution powered by the sun.
The smart OptiMate Solar system includes a 10 Watt weatherproof solar panel and a smart OptiMate Solar combination charger-monitor controller, that charges & maintains a 12V battery during the day and monitors and displays the battery state of charge at night.
The solar panel's wide spectrum poly-crystalline technology generates power even in low light, that the OptiMate controller converts into high current pulses more effective for charging and maintenance of a 12V battery. At night the smart controller turns into a battery monitor, providing battery information every 3 seconds on the easy to read 3 LED panel.
Charger by day, monitor by night, with battery information available 24-7!
SKU: TM522-1
Description
The world's most efficient solar pulse charge system that can save your 'dead' battery and provide safe long term maintenance.
CHARGE
Saves flat batteries from as low as 1V with its unique pulse action.
Fastest charge is delivered as 'smart charge' control selects pulse or continuous charge according to sunlight strength.
Intelligent maintenance continues the next day if battery retained charge overnight, otherwise the program reverts to OPTIMIZE step.
MONITOR
Battery condition is displayed every 3 seconds. Ready indication for STD and hi-performance AGM batteries. Draws less than 0.5mA during monitor mode.
Automatically switches to CHARGE when solar power is sufficient.
MOUNTING
The OptiMate charger-monitor controller is separate to the solar panel and can be placed close to the vehicle or battery so that charge and maintenance progress can be easily followed. The solar panel must be mounted and angled to receive direct sunlight. The reach / distance between battery and panel is 315cm / 124''. To extend, use OptiMate Cable Extenders O-03, O-13 or O-23 and insert between the solar panel and the OptiMate charge-monitor controller.
Outer dimension, including corner mount brackets :Width = 29.3 cm / 11 1/2 ” Height = 32.5cm / 12 5/8 ” Depth = 2.6 cm / 1”
Connecting to battery with included accessories:
Solar panel :
- POWER : 10 Watts (max.)
- VOLTS : 12V nominal, 22V maximum.
- USE : Outdoor.
- STYLE : Weatherproof, aluminium frame with 4 x mounting brackets, output cable 200cm / 80? with SAE connector.
OptiMate Charge controller:
- CHARGING AMPS : 0.83A from 10W panel (max. average current), 3-5A pulse current
- USE : Indoor / Outdoor (lowest temperature: -4°F / - 20°C).
- SAVE : Low Volt Start of 1V
- IDEAL FOR : STD, AGM & GEL 12V batteries from 2 – 240Ah.
- INPUT : 15 – 22V
- STYLE : Weatherproof charge controller case.

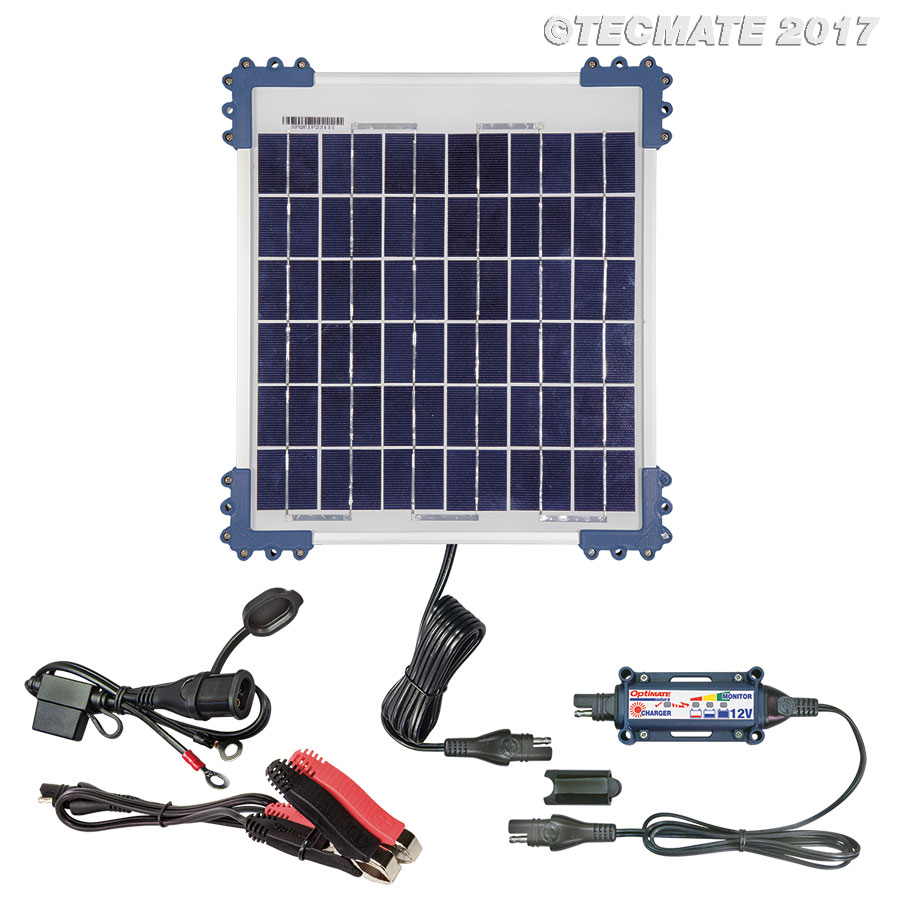

INCLUDED: Weatherproof battery lead, standard battery clip set & 10W solar panel
SAFE: No risk of overcharging. Totally safe for vehicle electronics. Sparks suppressed. Safe for long-term battery maintenance. Automatic shut-down if short-circuited or battery disconnected. 3-year limited replacement warranty.
