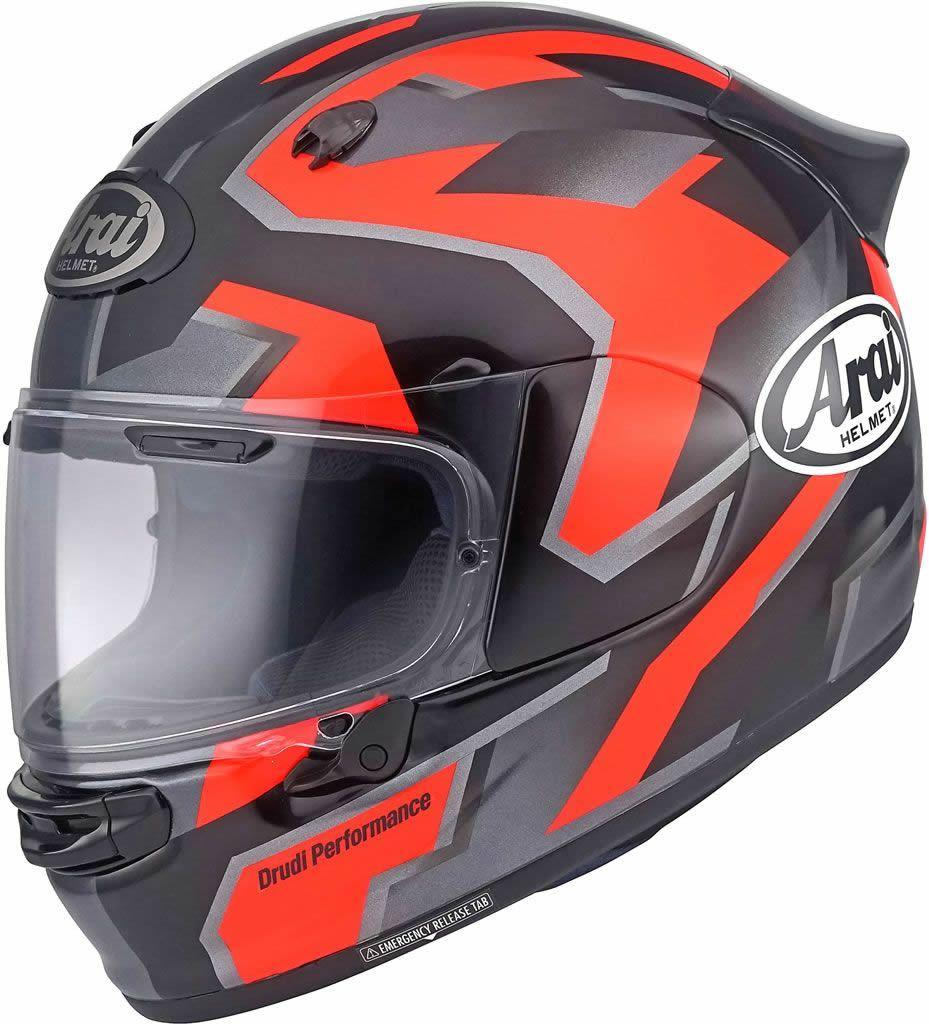

Arai Quantic - Robotic Red
As with every Arai, the Quantic is formed around protection, first and foremost. Manufactured by hand, the outer shell maintains core strength but with a substantial weight reduction. The smooth, round shape is a key Arai signature and primarily designed to ‘glance-off’ and spread impact forces. Using the aerodynamic and protective abilities of Arai’s full-race helmets and all the experience and know-how earned over millions of road kilometres, the new Quantic slips through the air neatly and efficiently, wrapping its wearer in a cocoon of luxury. It offers a fresh choice for riders that want the very best performance from a helmet – in terms of protection, comfort and ease of wear, day-in-day out – with zero compromise. For easy access on and off the Quantic features a 5mm flare around the base, while the VAS MAX vision visor comes with a Pinlock insert ready to use. The premium brushed nylon interior is removable and features Facial Contour System (FCS) and neck roll wire pocket. It also features Emergency Release System (ERS).
GENERAL
Outer shell: PB e-cLc (Peripherally Belted e-Complex Laminate Construction) - The PB e-cLc outer shell design outlines a stylish, organic shape and uses a Peripherally Belted e-Complex Laminate Construction for lightweight strength; it’s designed to glance off and spread impact forces. New materials have been used to substitute the AR-mat as middle layer, resulting in a substantial weight reduction while maintaining the same strength as the PB-cLc construction.
Variable Axis System (VAS) - With VAS, the visor mounting position is lowered, yielding an average of an additional 24mm across both temple areas, in pursuit of the ideal smoother shape that increases the ability of glancing off energy. As a result, this has made it possible for more of the shell to be smoother along and above the test line of the Snell standard.
Double-D ring
ECE R22-06 Approved
VENTILATION
Quantic Ventilation - Comprehensive and controllable ventilation is based around 12 ventilation ports: 6 intake, 6 exhaust. The 3D Arai logo feeds cooling air into two central intake points and works well at low speed, alongside dual F1-derived tear duct top intakes, twin brow vents and 2-position sliding air-scoop, filtered chin vent. Hot air is efficiently extracted via the 3-way one-piece rear exhaust/spoiler, twin flush-fit side exhausts (with foam dams to reduce noise) and neck exhaust.
FRONT VENTILATION
3D Arai logo duct - Immediately noticeable, the new 3D Arai logo duct (made as thin as possible, just 3.5mm in depth) feeds two central 10mm intake ports. This is a first in an Arai, and entirely due to PB e-cLc’s strength and the shell construction. It also works very well at low speed and with an upright riding position; at just 50km/h it’s channelling an extra 40% airflow, at 120km/h 7%. It can also be opened, or closed, easily with summer or winter gloves, via a short-stroke lever placed at the top; if the rider can’t see the lever and the logo is in its normal place, the duct is open. The Arai logo duct is designed to breakaway in the event of an impact.
Air-scoop chin vent - Also new is the 3-position (open, midway and closed) sliding air-scoop chin vent which flows a larger intake volume of air and has a replaceable filter. The actuating mechanism is thicker and easy to use with gloves.
Dual intake
Brow vents
REAR VENTILATION

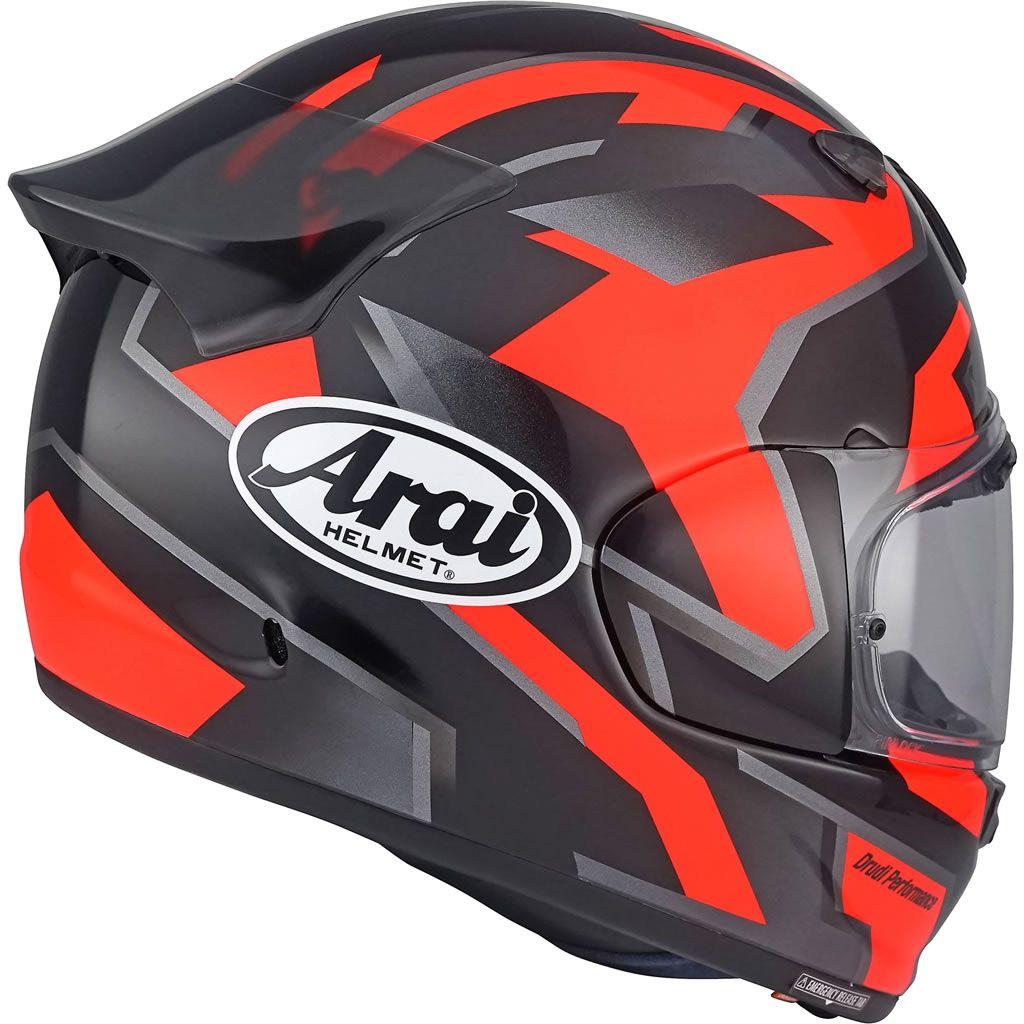

One-piece rear exhaust with spoiler function - The one-piece rear exhaust/spoiler, operated by a 3-way switch, is inspired by the DX-2 of the RX-7V Racing, but redesigned for touring use – however, it was tested up to 300km/h at Suzuka. It sits a little more forward on the shell and is fed by 3 ports in the shell. As part of the Quantic’s comprehensive ventilation system it efficiently draws air but also smooths airflow over (and from the side) of the helmet, improving stability and reducing buffeting, especially while overtaking at highway speeds. The result is much less rider fatigue. Manufactured as thin and light as possible it’s designed to crush or break away upon impact, therefore having no impact on protective performance.
Neck exhaust vent
Side exhausts
AERODYNAMICS
One-piece rear exhaust with spoiler function - The one-piece rear exhaust/spoiler, operated by a 3-way switch, is inspired by the DX-2 of the RX-7V Racing, but redesigned for touring use – however, it was tested up to 300km/h at Suzuka. It sits a little more forward on the shell and is fed by 3 ports in the shell. As part of the Quantic’s comprehensive ventilation system it efficiently draws air but also smooths airflow over (and from the side) of the helmet, improving stability and reducing buffeting, especially while overtaking at highway speeds. The result is much less rider fatigue. Manufactured as thin and light as possible it’s designed to crush or break away upon impact, therefore having no impact on protective performance.
VISOR
VAS Max Vision Visor
Pinlock insert lens included
INTERIOR
Brushed nylon Liner material - Using the interiors of both the Profile-V and RX-7V as benchmarks the Quantic’s interior was designed from scratch for maximum comfort, airflow (there are two holes in the forehead area) and light weight. The interior and cheek pads are easily removed for cleaning or adjustment.
Replaceable Cheek pads/Ear cups
Replaceable Interior
Speaker pockets
Facial Contour System (FCS)
5mm ’’Peel Away’’ Temple pad
COMFORT
Emergency Release System (ERS) - Allows easier access to an injured rider. By pulling the orange tabs integrated in the pads, the cheek pads slide out. Making helmet removal easier for trained medical personnel and rescuers. Minimising the risk of additional injury.
Breath guard
Chin Curtain (fixed)
5mm wider base
Intercom accommodation
Neckroll wire pocket
